Force X drilling

The series consists of drills with a possible drilling depth of 3xD, 5xD and 8xD. The first two are available in a version with cooling channels and a version without cooling channels. The latter drill is only available with cooling channels, because at that depth it is necessary to evacuate the chips from the hole by means of cooling pressure.

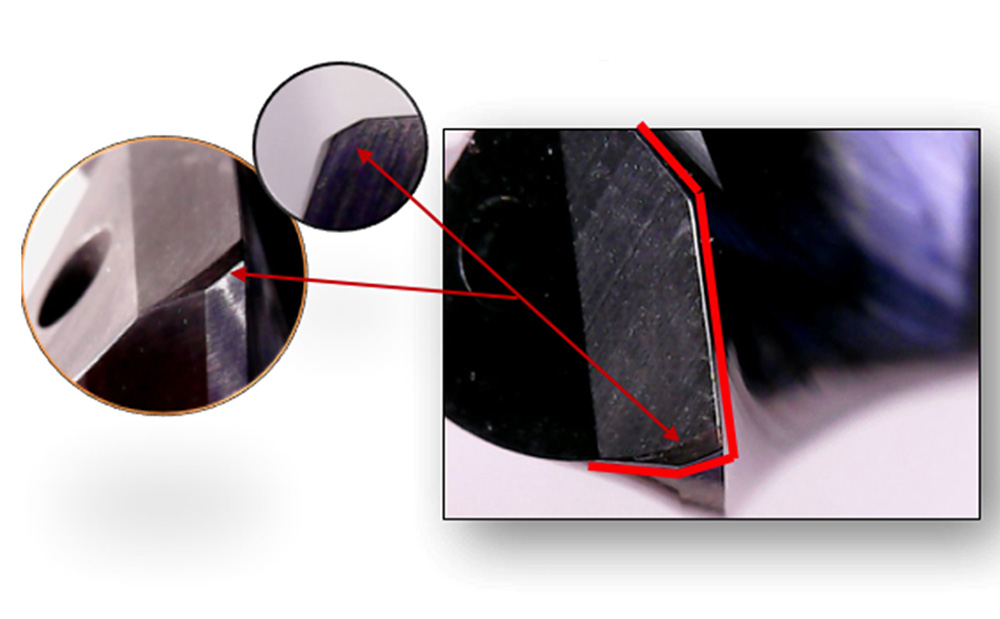

Unique to the Force X series is the CTW TM geometry. This ensures a good centering point in combination with a much better resharpenability of the drill. With VHM drills, it is worthwhile to regrind several times due to the higher purchase price. This leads to a saving of valuable raw materials and tool costs. Solid carbide drills often have quite complex point geometries, which means that in practice a lower performance can be experienced when regrinding. The CTW TM geometry offers a solution for this.

Force X drills feature a reinforced cutting edge design. This benefits the standing time. In addition, the drills with through holes will generate less forces in the material when they come through. Also, the cutting angle design increases the hole quality and cross-hole drilling will be better and quieter. The cutting edge of the solid carbide drills have been specially treated, making them more stable without losing their sharpness. This also increases the tool life and makes the cutting edge less likely to crumble or flake.

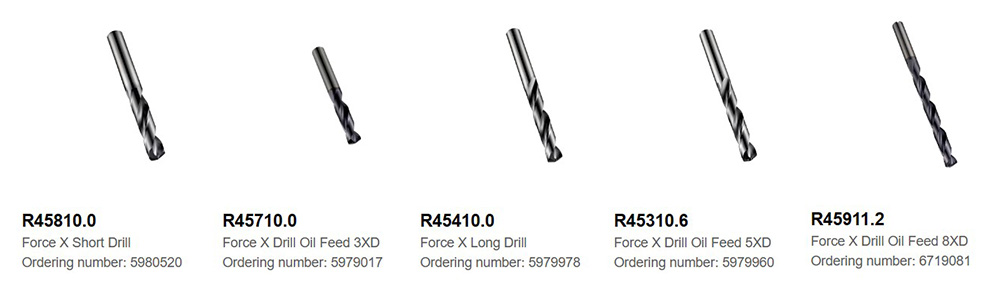

Force X Series:
